SEISMIC ANALYSIS AND QUALIFICATION FOR FIREFIGHTING SYSTEM FOR NUCLEAR POWER PLANT
ProSIM is a renowned leader in the field of seismic qualification services for critical engineering packages used in nuclear power plants. One of the most vital safety-critical systems in any nuclear facility is the firefighting package, which includes piping, pumps, and associated equipment that must remain operational under extreme conditions. Ensuring the safe working of firefighting systems during seismic events is a regulatory requirement as well as a core safety necessity to guarantee uninterrupted functioning of emergency response mechanisms.
Recently, ProSIM was entrusted with the Nuclear Seismic Evaluation of firefighting piping in accordance with ASME Sec III ND requirements. This project presented significant technical challenges because the piping was classified as Class 1 piping, necessitating rigorous analysis for both Operating Basis Earthquake (OBE) and Safe Shutdown Earthquake (SSE) conditions. Unlike conventional piping, Class 1 piping systems in nuclear plants demand enhanced reliability, as their failure can directly compromise plant safety during critical events.
Initially, the project had been awarded to another reputed engineering services consultant. However, the earlier consultant encountered challenges in performing the nuclear seismic qualification as per stringent ASME nuclear codes. With time-sensitive project milestones and regulatory compliance at stake, the end customer turned to ProSIM, recognizing its unmatched expertise in FEA Seismic Qualification and extensive track record in delivering reliable nuclear engineering solutions.
Upon engagement, ProSIM undertook a comprehensive seismic qualification program that included:

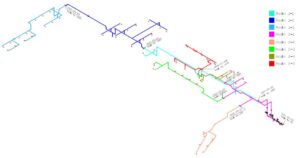

- Seismic analysis of the firefighting piping system using advanced Finite Element Analysis (FEA) techniques.
- Qualification of pipe supports under dynamic loading conditions.
- Recommendations for support design and relocation at critical stress concentration zones.
- Base plate and bolt qualification to validate the integrity of anchoring arrangements.
- Detailed engineering solutions for stress reduction, particularly in locations experiencing high seismic forces.
The piping system was carefully evaluated for a full range of load cases, including:
- Sustained loads (pressure, weight, and static conditions).
- Thermal expansion loads due to operational temperature variations.
- Occasional loads arising from seismic events (OBE and SSE).
One of the most technically challenging aspects of this project was the consideration of seismic anchor movement, as the pipeline extended across multiple floors of the building. This required highly detailed simulations to capture inter-floor dynamic effects and anchor displacements, ensuring that realistic seismic behavior was accurately represented in the analysis.
Based on ProSIM’s precise recommendations, the end customer implemented modifications to the support layout at critical locations. A subsequent seismic qualification demonstrated that the revised piping system met all the allowable stress limits as per ASME code requirements, validating the effectiveness of ProSIM’s engineering interventions.
This project is a testament to ProSIM’s ability to deliver high-value, seismic qualification services under challenging conditions. By combining domain expertise, advanced FEA tools, and strategic collaboration with subject matter experts, ProSIM not only ensured compliance but also contributed to enhancing the overall nuclear plant safety framework.
Through such projects, ProSIM continues to create a lasting impact on the nuclear community, enabling safer, more resilient plant operations worldwide. The organization’s unique approach—anchored in technical excellence, code compliance, and innovative problem-solving—reinforces its position as the trusted partner for nuclear seismic qualifications.
